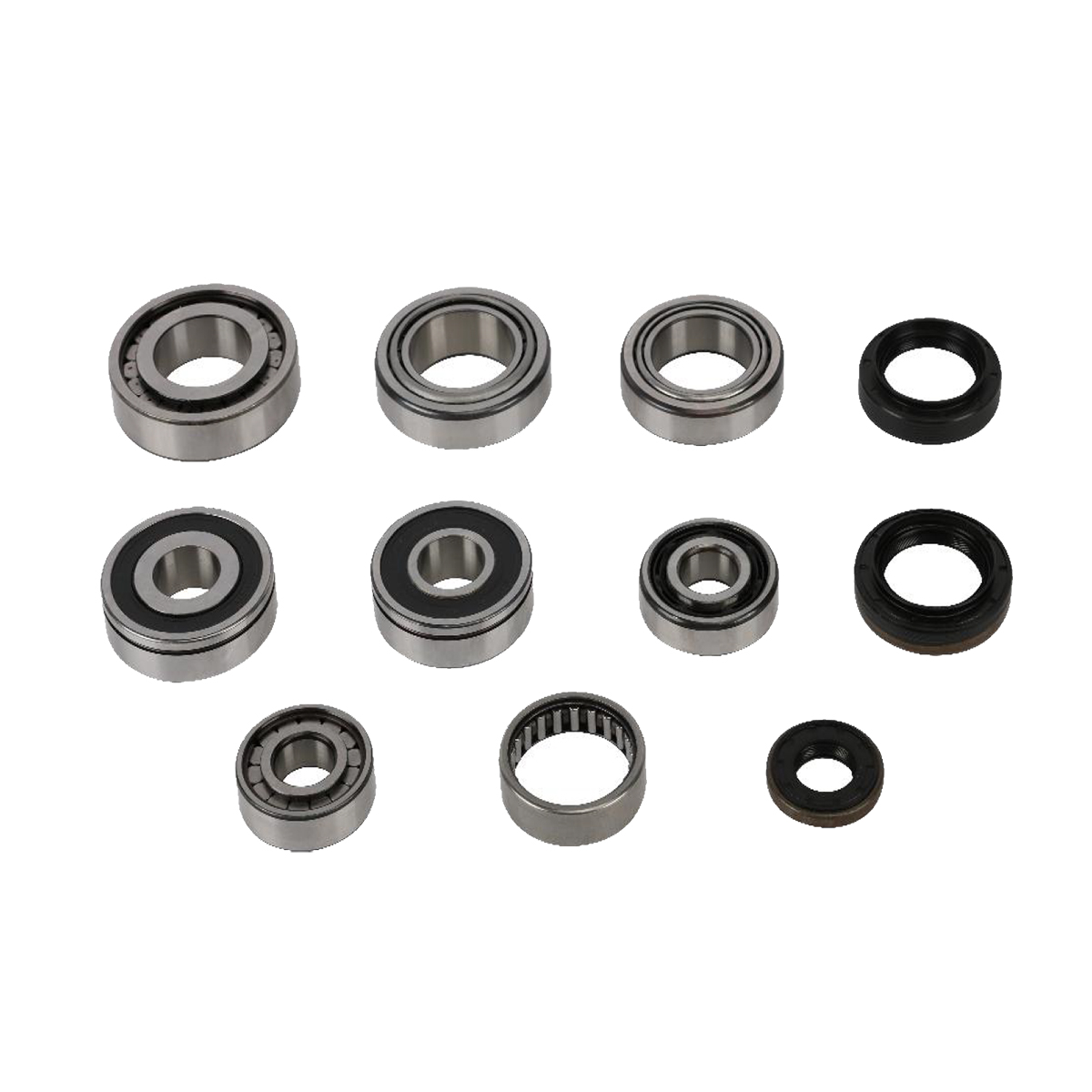

Bearing kit C514 6spd Fiat / Alfa Romeo 0.9L
- Product Code: 462024310
Korjaussarja Opel ja Fiat C514.6 6-vaihteisiin manuaalivaihteistoihin 0.9L moottorilla. Sisältää laakerit ja tiivisteet. HUOM! Tähän C514.6 vaihteistoon on valikoimassa kaksi eri sarjaa.
| Kuvaus | Sijainti | Osa | Mitat (mm) | Osanumero |
|---|---|---|---|---|
| Main bearing input shaft | Engine side | Cylindrical roller bearing | 20.00 x 47.00 x 14.00 | 40021 S01 H100 / 55208335 / 7726277 / 7781405 |
| Main bearing input shaft | Gearbox side | Ball bearing | 24.00 x 62.00 x 17.00 | 46794118 |
| Main bearing output shaft | Engine side | Cylindrical roller bearing | 37.00 x 73.00 x 17.00 | N 12528 S09 H100 / 46763885 |
| Main bearing output shaft | Gearbox side | Ball bearing | 24.00 x 58.00 x 17.00 | 623705 2RS1/A / 46794117 |
| Support bearing input shaft | Roller bearing | 40.00 x 50.00 x 14.00 | F-222158 / 7765175 / 7765175 | |
| Support bearing output shaft | Ball bearing | 20.00 x 50.00 x 14.00 | 800618 / 46823135 / 7765176 | |
| Main bearing differential | Engine side | Tapered roller bearing | 38.00 x 63.00 x 17.00 | JL 69349 A/310 / 55225251 |
| Main bearing differential | Gearbox side | Tapered roller bearing | 40.00 x 68.00 x 19.00 | F-848026.TR1 |
| Seal ring input shaft | Engine side | Shaft sealing ring | ||
| Seal ring differential | Engine side | Shaft sealing ring | ||
| Seal ring differential | Gearbox side | Shaft sealing ring |
Sarja sisältää myös osanumerot/numeroita:
800618 X1, N 40021 S01 H100 X1, N 42487 S01 H300 X1, F-222158 X1, JL 69349 A/310 X1, F-848026.TR1-DY X1, 623705 2RS1A, 632605 2RSR/A, 81001424 KITT, 12014345B X1, 12015267B X1, 12036825B X1, 46343828 ALFA ROMEO, 55227046 ALFA ROMEO, 7765175 ALFA ROMEO, 46343828 FIAT, 46444778 FIAT, 46794117 FIAT, 46794118 FIAT, 46823135 FIAT, 55208335 FIAT, 55225251 FIAT, 55227046 FIAT, 55270258 FIAT, 7667783 FIAT, 7726277 FIAT, 7765175 FIAT, 7765176 FIAT, 7781405 FIAT, 9403125189 FIAT,
Sopii mm. autoihin Alfa Romeo: Mito / Fiat: 500, 500L, Panda, Punto
