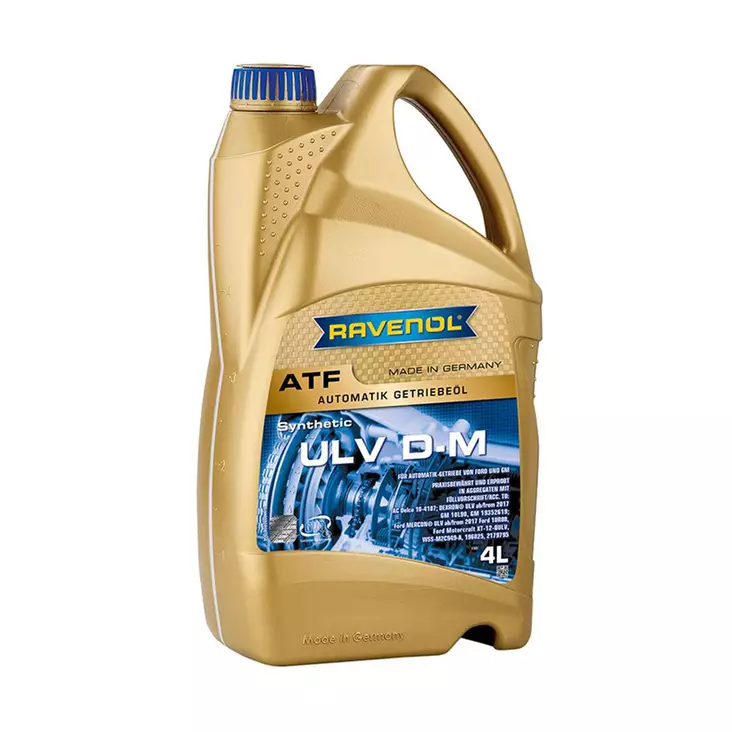

Automaattivaihteistoöljy ATF ULV D-M Ravenol

RAVENOL ATF ULV D-M is a Ultra Low Viscosity (ULV) Automatic Transmission Fluid (ATF), designed on the basis of PAO (Polyalphaolefin), Ester and highquality hydrocrack oils with a special additive and inhibition, which ensure a perfect function of the automatic transmission.

RAVENOL ATF ULV D-M is an ATF (Automatic Transmission Fluid) developed for the latest 6, 8 and 10 speed automatic transmissions from Ford and GM.

RAVENOL ATF ULV D-M guarantees maximum wear protection in all operating conditions and offers reduced fuel consumption.

Application Note

RAVENOL ATF ULV D-M was developed for use in 6, 8 and 10 speed automatic transmissions, especially from Ford and GM.

RAVENOL ATF ULV D-M is particularly suitable when the Ford WSS-M2C949-A specification is required.

It is recommended to flush with RAVENOL ATF ULV D-M before filling with RAVENOL ATF ULV D-M.

RAVENOL ATF ULV D-M is particularly suitable for

Ford 6-speed transmissions 6F15

Ford 8-speed automatic transmissions 8F24, 8F35, 8F40, 8F57

Ford 10-speed 10R60, 10R80-MHT, 10R80, 10R140

GM 10-speed 10L80 MF6, 10L90 MGL, 10L100 (Allison) MGM/MGU

Please observe the manufacturer's instructions and operating manual.

Characteristics

• Very good lubricating properties also at low temperatures in winter
• Protection of highly loaded gear components, thus extended service life
• Very low flow point
• Excellent oxidation stability
• Protection against wear and corrosion
• Well balanced friction properties

Technical Product Data

All indicated data are approximate values and are subject to the commercial fluctuations.
